Master 240 Volt Indirect Diesel Oil Heater BV400
240 Volt | 237,000 - 375,000 Btu | 80 - 110 kW | Air Flow 6,200m3 Per Hour | 150 Litre Tank
Indirect heaters are highly efficient and provide 100% clean, dry and fume free air. They are best used where there is limited ventilation in the space you are looking to heat such as warehouses, exhibition halls and marquees to name but a few.
The Indirect heater is placed outside where the exhaust fumes are vented through a vertical exhaust pipe into the open air.
The Master range of indirect heaters range from 20kW or 116,000 Btu to 225kW or 768,000 Btu and are available in 110, 240 Volt or Dual voltage dependent on the model.
Complemented by a full range of accessories including digital thermostats, ducting kits and exhausts there is a package for most indirect heating requirements.
Depending on the space you are looking to heat will depend on the size of your heater.
If you require any further technical advice regarding the right heater for the right job do not hesitate to contact any member of our sales team.
Fuel Type : | Diesel Oil |
Voltage : | 240 Volt |
Heating Power (Kw) : | 1st Stage 80 Kw 2nd Stage 110 Kw |
Heating Power (Btu) : | 1st Stage 237,000 Btu 2nd Stage 375,000 Btu |
Heating Power (Kcal) : | 1st Stage 68,800 Kcal 2nd Stage 94,600 Kcal |

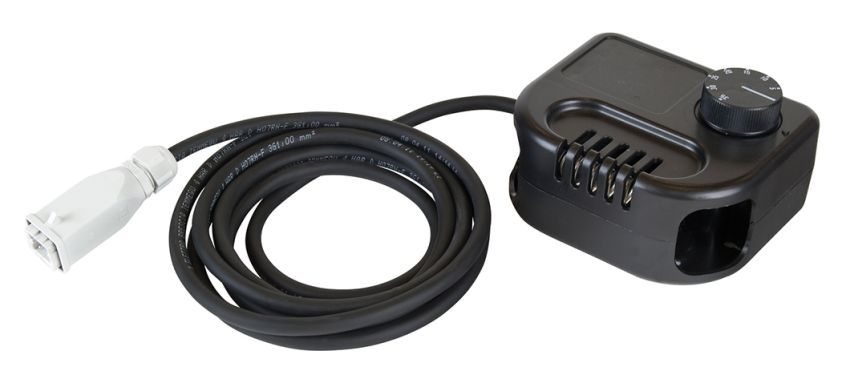

Thermostat Control : | Analog (Optional Extra) |

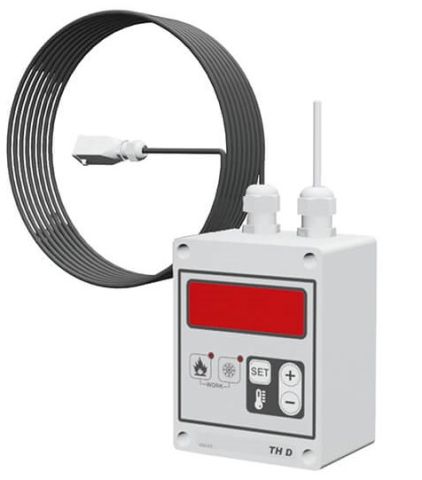

Thermostat Control : | Digital (Optional Extra) |
Air Displacement : | 6,200 M3/h |
Air Pressure : | 500 Pa |
Fan Type : | Plug Fan |
Power : | 750 Watts |
Rated Current : | 6.8 Amp |
Fuel Tank Capacity : | 150 Litres |
Fuel Consumption : | 1st Stage High:10.2 Lph 2nd Stage Low 7.7 Lph |
IP Rating : | IP44 |
Air Outlet Diameter (Single) : | 1 x 40cm (Standard) |

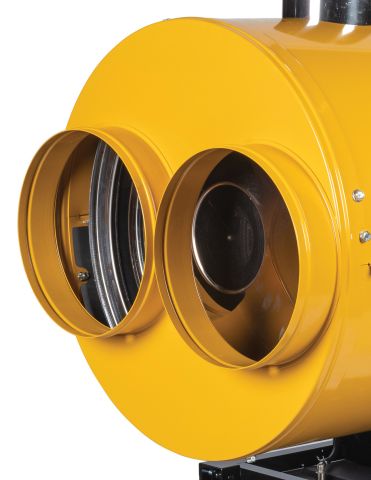

Air Outlet Diameter (2 Way) : | 2 x 31cm Splitter (Optional Extra) |
Air Outlet Diameter (4 Way) : | Not Available |
Ducting Diameter (Single) : | 45cm (Standard) |
Ducting Diameter (2 Way) : | 31cm 2 Way Splitter |
Ducting Diameter (4 Way) : | Not Available |

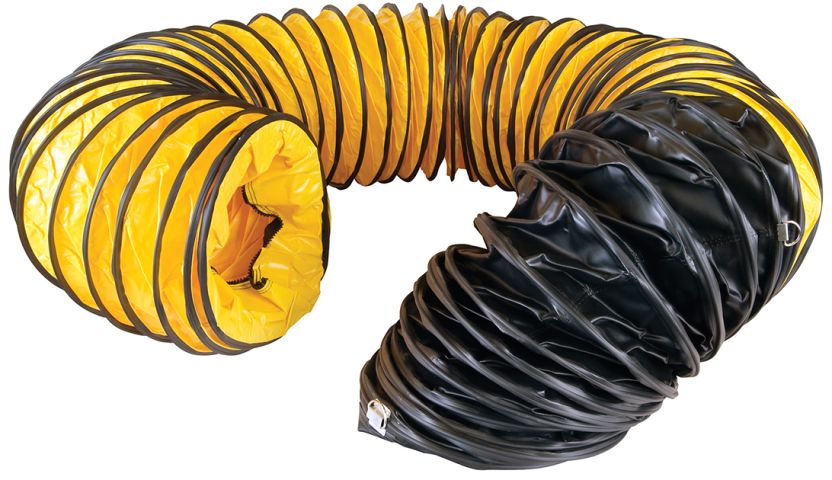

Ducting : | Optional Extra |
Exhaust Tube Diameter : | 15cm |
Exhaust x 1 Metre : | Optional Extra |

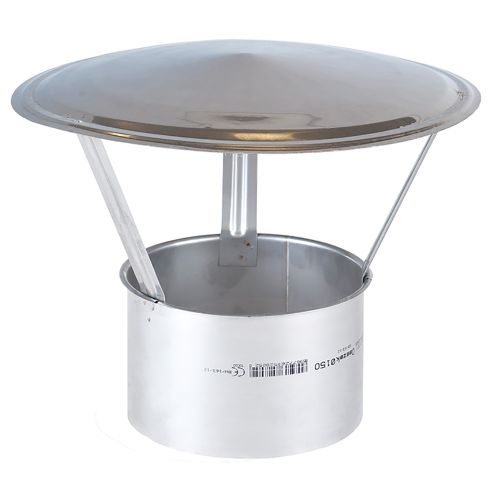

Exhaust Rain Lid : | Optional Extra |
Length : | 208.6cm |
Width : | 71.7cm |
Height : | 123.3cm |
Forklift Slots : | Included |
Trolley Wheel Kit : | Included |
Noise Level : | 72 db(A) |
Weight : | 220kg |
