Master 415 Volt 40 kW Electric Fan Heater RS40
415 Volt|63 Amp 5 Pin|136,500 Btu|40 kW
Order Code:
RS40
Electric heaters come in various forms and predominantly are either oil filled or fan assisted and are a great way to produce instant heat when you need it most.
Fan heaters work on the principle that an electrical current is passed through an element converting the energy in to heat, a fan to the rear of the heater element blows air over the heat source creating warm air.
The Elite and Master Range of electric heaters range from 2kW or 6,800 Btu to 40kW or 136,500 Btu and are available in 110, 240 and 415 Volts.
If you require any further technical advice regarding the right heater for the right job do not hesitate to contact any member of our sales team.
| Voltage : | 415 Volt (3 Phase) |
| Powercord (400 Volt) : | 50.0cm |
| Heat Settings (Fixed) : | 3 |
| Heating Power (Kw) Positions 2,3 & 4 : | 13 Kw 26 Kw & 40 Kw |
| Heating Power (Btu) Positions 2 - 4 : | 44,360 Btu Variable To 136,500 Btu |
| Heating Power (Kcal) Positions 2 - 4 : | 11,200 Kcal Variable To 34,400 Kcal |
| Cooling Fan Settings : | 1 |
| Input Plug (Heater Side) : | 63 Amp |

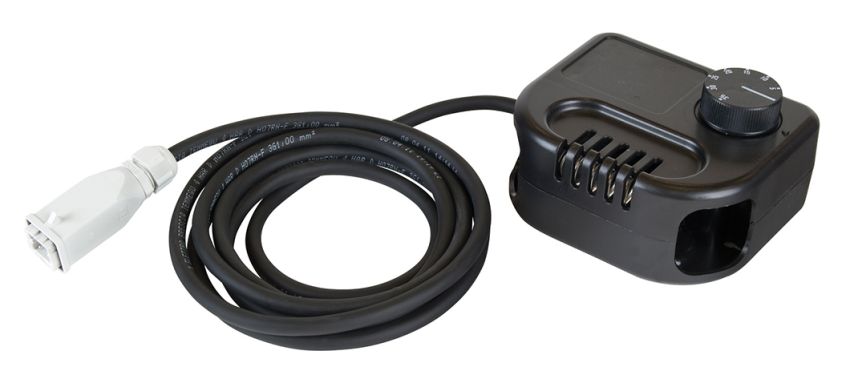

| Thermostat Control : | Included |
| Air Displacement : | 3,100 M3/h |
| Working Temperature Range : | -5 > +35 |
| Fan Type : | Axial |
| Power Fan Motor : | 155 - 250 Watts |
| Rated Current : | 58 Amp |
| Air Outlet Diametre (Single) : | 1 x 51cm (Standard) |
| Air Outlet Diametre (2 Way) : | Not Available |
| Ducting Diametre (Single) : | 51cm (Standard) |
| Ducting Diametre (2 Way) : | Not Available |

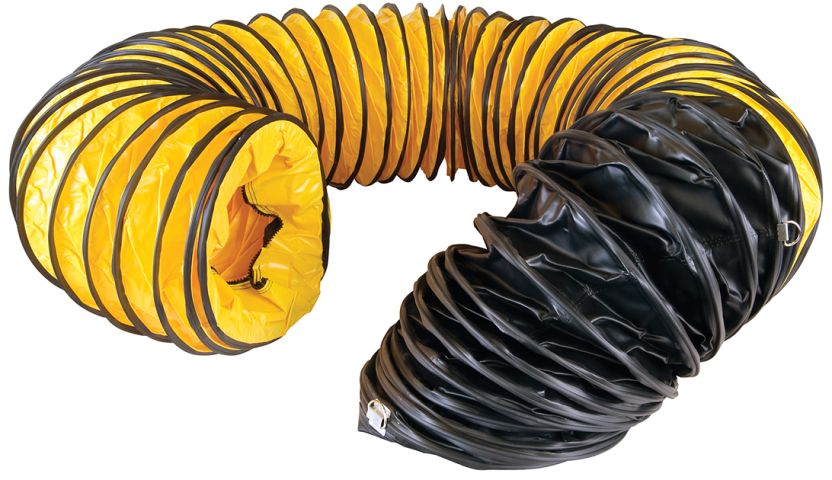

| Ducting : | Optional Extra |
| Motor Thermal Protection : | Included |
| Overheat Thermostat Protection : | Included |
| Length : | 99.0cm |
| Width : | 71.0cm |
| Height : | 80.0cm |
| IP Rating : | IP20 |
| Trolley Wheel Kit : | Included |
| Noise Level : | 70 dB(A) |
| Weight : | 46kg |
